760High altitude Stand Seam roll forming Machine

High Altitude Angle Tile Press Equipment: Enhance Efficiency and Quality with Precision Engineering

Product Overview

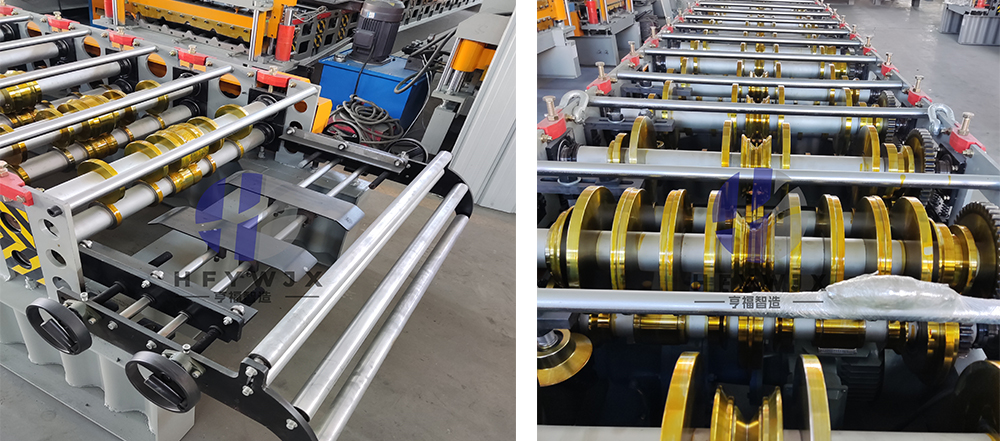

The high altitude angle tile press equipment is a cutting-edge, single-roll forming unit designed to produce tiles of varying specifications with exceptional precision and efficiency. Its robust structure comprises:

· Loading rack and loading rack support

· Feed introduction platform

· Molding host

· Molding and shearing device

· Hydraulic station

· Computer control box

This state-of-the-art equipment offers unparalleled efficiency, stability, and ease of operation, making it a reliable choice for high-volume production environments.

Common Issues and Solutions

1. Deviation of Color Steel Plates

One of the most common challenges during operation is the deviation of the color steel plate, which can affect both production efficiency and product quality. To address this, consider the following solutions:

A. Deviation Adjustment:

· If the board shifts to the right, place an iron block under the left corner or adjust the right roller to align it.

· Ensure that the upper and lower rollers are perfectly aligned. When adjusting the upper roller, the lower roller must also be adjusted accordingly.

· Proper alignment of symmetrical rollers is critical for maintaining consistent product shapes.

B. Axis Alignment:

· Adjust the four corners of the equipment (front and rear rows) to the same height.

· Ensure that the lower shaft is level and aligned horizontally.

· Locate the symmetry points for the first and last rows and adjust the upper and lower shaft gaps for straight-line operation.

· Tighten the lock nuts and mark a centerline along the middle runner for precise alignment.

Pro Tip: Regular production testing is essential. Deviations may vary, but maintaining proper alignment of rollers and mechanical components is critical to ensuring consistent product quality.

Operating Tips for Optimal Performance

1. Key Components and Structure:

The equipment features advanced components for superior performance, including:

· Passive loading rack

· Punching device

· Leveling device

· Hydraulic station

· Computer control system

· Post-forming cutting device

An automated flying saw punching device simplifies operations, making it user-friendly and efficient.

2. Streamlined Production Process:

The tile press equipment employs wet production technology for glazed tiles, utilizing a vacuum spiral extrusion mechanism during cutting to shape and press tile blanks with precision.

3. Unique Advantages:

· Economical Section Design: Optimizes steel utilization and enhances load-bearing capacity.

· H-Shaped Steel Profile: Features widened wings with parallel inner and outer surfaces, allowing for easier connections using high-strength screws and other components.

· Versatility and Flexibility: Compared to ordinary I-shaped tile presses, the H-shaped design offers greater adaptability for various applications.

Why Choose High Altitude Angle Tile Press Equipment?

· Precision Engineering: Ensures accurate tile shaping and consistent quality.

· Durable Construction: Designed for long-term, reliable performance.

· Ease of Use: User-friendly design with automated features for seamless operation.

· Enhanced Efficiency: Saves time and resources while improving production output.

Upgrade Your Tile Production Today!
Boost your manufacturing efficiency and achieve superior product quality with our high altitude angle tile press equipment. From precision forming to intelligent adjustment solutions, this machine is designed to meet the demands of modern production lines.

Contact us now to learn more about how our equipment can transform your operations and deliver exceptional results!
