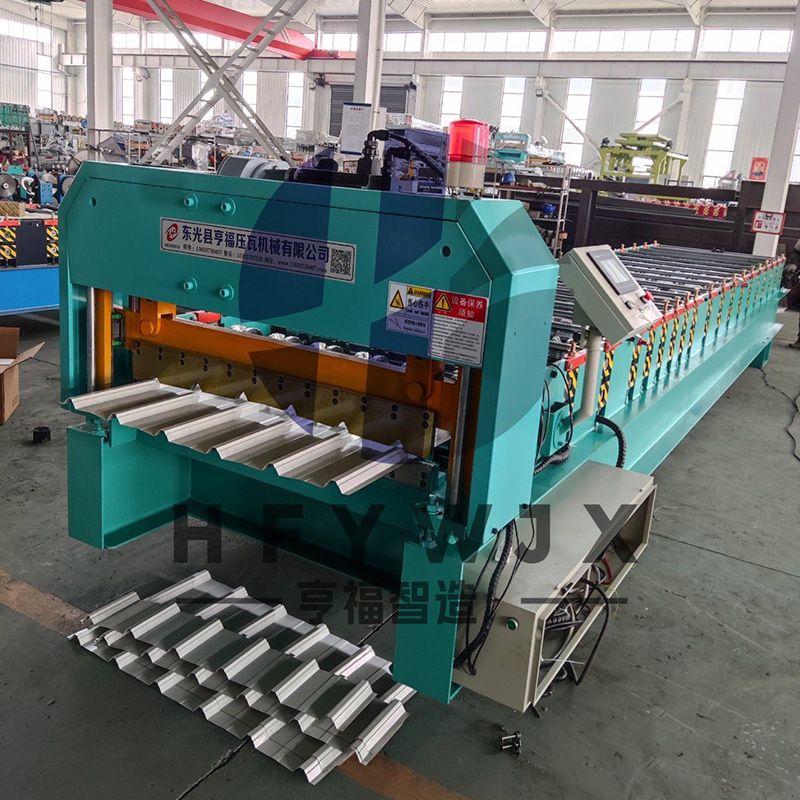

950T roll forming machine

Overall dimensions: about 7000mmx1300mmx1500mm

* Machine frame: 350H steel frame

* Wall thickness: 14mm

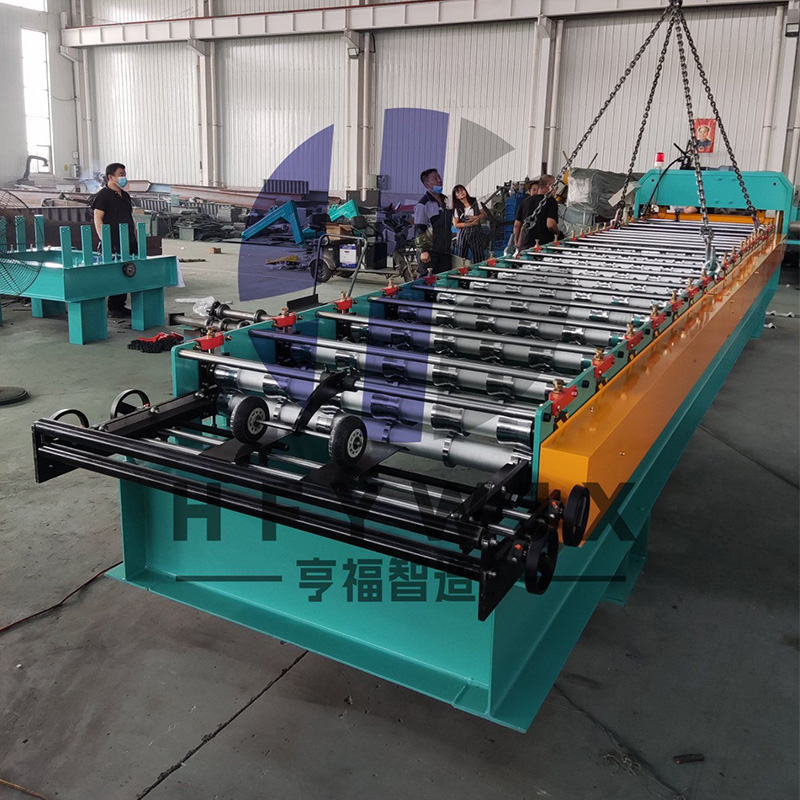

* Roller group number: 18 rows of forming

* Roller material: 45# steel rough turning, fine turning, external cylindrical grinding and electroplating

* Spindle diameter: ￠70mm (solid shaft)

* Main motor power: 7.5 servo motor

* Drive mode: 1-inch chain drive

* Production speed: 30-35M/min

* Shearing power: 3.8kw servo

* Feeding method: double-handed shaking feeding

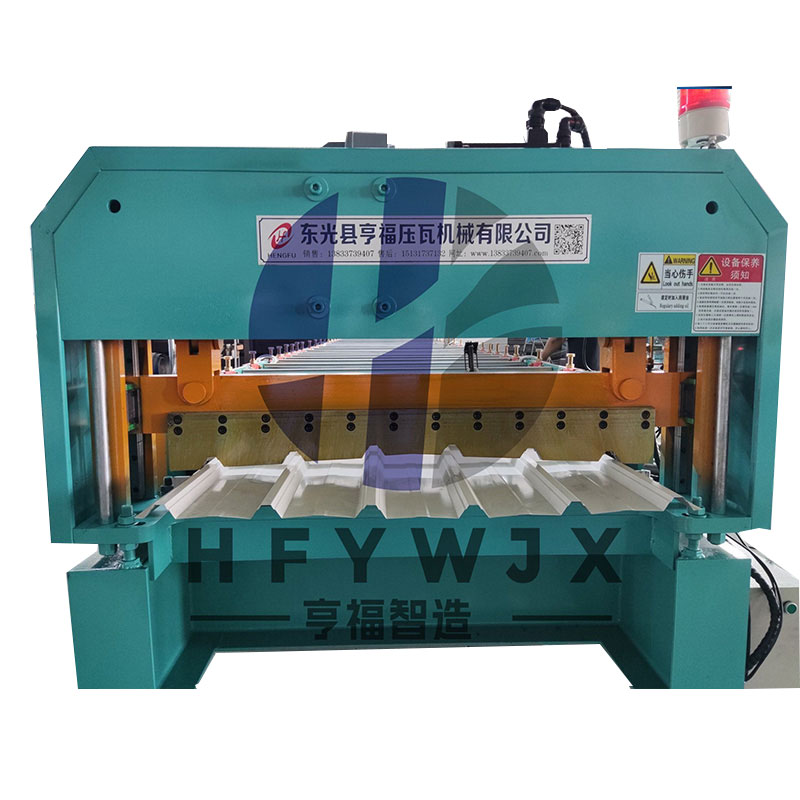

* Cutting: Cutting after forming, four-column pull rod guide rail shearing

(Shearing without burrs, extremely low maintenance rate)

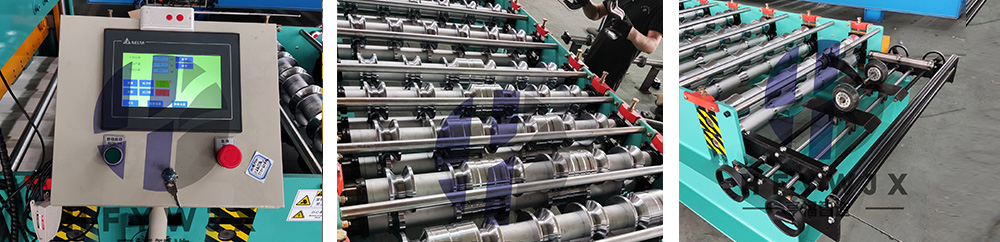

* Electronic control system: industrial computer PLC frequency conversion control, cutting length error ≤1mm

* Pull rod: 35mm, galvanized; * PLC: Wuxi Xinjie;

Our company can produce various types of tile pressing machine products, and the roll forming plate types are diverse.

Q1:Are you a manufacturer?

A1:Yes absolutely. Welcome a lot for your visiting to us.

Q2:Do you have after-sale support?

A2:Yes, we're always here for giving you advice and support for technical details since we have senior technician.

Q3:Is there quality control when manufacturing the lines?

from laying off the raw material, processing the rollers and the other parts, make treatment on the roller surface and shaft, assembling, testing and packaging.

Q4:What's your strength comparing to the other supplier?

A4:We'll supplying you the best quality and service. We'll give you good advise beyond your requirements. The lines are easily for installation and with low mantenance requirements.

Q5: Any other service?

A5: We can manufacture, design, installation and debug various roll forming machines including standard and customized machines.
It is free to assemble machine and train your works, but the buyer should pay for the round-trip airplane ticket, and arrange
accommodation during that time.
