Cable Tray Roll Forming Machine are important equipment for manufacturing cable trays and are widely used in industries such as power, communications, and construction. This article will detail the working principle and application fields of Cable Tray Roll Forming Machine to help you deeply understand this efficient production tool.

I. Working Principle of Cable Tray Roll Forming Machine

Cable Tray Roll Forming Machine process metal sheets into cable trays through a series of automated processes. The main steps include uncoiling, leveling, punching, forming, cutting, and collecting. Here is a detailed introduction to each step:

1. Uncoiling and leveling:

Uncoiling machine: Unfolds the metal coil and feeds it into the forming machine.

Leveling machine: Corrects the flatness of the metal sheet to ensure the accuracy of the sheet in subsequent processing.

2. Punching:

Punching machine: Punches holes in the sheet according to the pre-set design drawing. These holes are used for the installation and fixation of the tray.

3. Roll forming:

Roll forming machine: Through multiple sets of roll forming dies, the metal sheet is gradually formed into the required tray shape. This process requires high-precision dies and control systems to ensure that the size and shape of the tray meet the requirements.

4. Cutting and collecting:

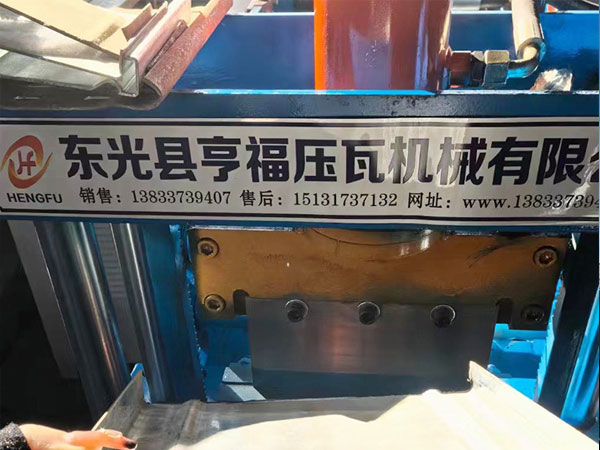

Cutting machine: Cuts the formed cable tray according to the set length.

Receiving table: Collects and arranges the finished cable tray for subsequent packaging and transportation.

II. Application Fields of Cable Tray Roll Forming Machine

The application fields of Cable Tray Roll Forming Machine are very extensive, mainly including the following aspects:

1. Construction industry:

In construction, cable trays are used for the laying and protection of cables to ensure the safe operation of cables. The cable trays produced by the forming machine can adapt to various complex building structures and provide reliable cable support.

2. Power industry:

A large number of cable trays are required for cable wiring in the power system. The cable trays produced by the forming machine can withstand the usage requirements in high-current and high-voltage environments to ensure the stable operation of the power system.

3. Communications industry:

The wiring of the communication system requires high-quality cable trays to support and protect optical fibers, cables and other equipment. The cable trays produced by the forming machine have good ventilation and heat dissipation performance, which is suitable for high-density wiring of communication equipment.

4. Industrial manufacturing:

In the field of industrial manufacturing, cable trays are used for cable wiring of various equipment and production lines. The cable trays produced by the forming machine can be customized according to different industrial needs to provide high-strength and corrosion-resistant solutions.

III. Precautions in Selecting a Cable Tray Forming Machine

When selecting a cable tray forming machine, the following key factors need to be considered:

Production capacity: Select the appropriate production line speed and production capacity according to the actual production needs.

Equipment quality: Pay attention to the manufacturing materials and processing accuracy of the equipment to ensure the durability and stability of the equipment.

Degree of automation: High-degree-of-automation equipment can reduce manual intervention and improve production efficiency and product consistency.

After-sales service: Choose a supplier that provides good after-sales service and technical support to ensure the maintenance and fault handling of the equipment during use.

IV. Summary

Cable Tray Roll Forming Machine play an important role in modern manufacturing. Through efficient and accurate processing techniques, they provide reliable cable support solutions for various industries. Understanding the working principle and application fields of Cable Tray Roll Forming Machine can help enterprises better select and use this important equipment and improve production efficiency and product quality. If you have more questions about Cable Tray Roll Forming Machine, welcome to contact us.
