Non-stop shearing Corrugated Roofing Sheet Machine
The Corrugated Roofing Sheet Machine equipment that replaces the horizontal press machine can press the thinnest plate with a thickness of 0.09mm and the speed can reach 60 meters per minute. It owns patents such as linear guide rails.
Product Details
The Corrugated Roofing Sheet Machine equipment that replaces the horizontal press machine can press the thinnest plate with a thickness of 0.09mm and the speed can reach 60 meters per minute. It owns patents such as linear guide rails.
| Dimensions Габариты | 12000mm x 1500mm x 1450mm 12000 мм x 1500 мм x 1450 мм |
| Machine frame Рама станка | 400H steel frame Стальная рама 400H |
| Number of roll sets Количество комплектов роликов | 26 sets of main rolls 26 комплектов основных валков |
| Roller material Материал роликов | 45# steel, quenched, rough turned, fine turned, polished, and then electroplated. Сталь 45#, закаленная, грубо обточенная, чистовая обточка, полированная и гальванизированная. |
| Spindle Diameter Диаметр шпинделя | ￠70mm (solid shaft) 70 мм (сплошной вал) |
| Main Motor Power Мощность главного двигателя | 7.5kW servo motor Серводвигатель 7,5 кВт |
| Drive Привод | Gear Редуктор |
| Production Speed Скорость производства | 50/60 m/min (conservative speed) 50/60 м/мин (консервативная скорость) |
| Cutting Die Вырубной штамп | Two-blade shearing blades, Cr12 molybdenum vanadium hardened, HRC 58-60 Двухлезвийные ножницы, закалённые молибден-ванадиевой сталью Cr12, твёрдость HRC 58-60 |

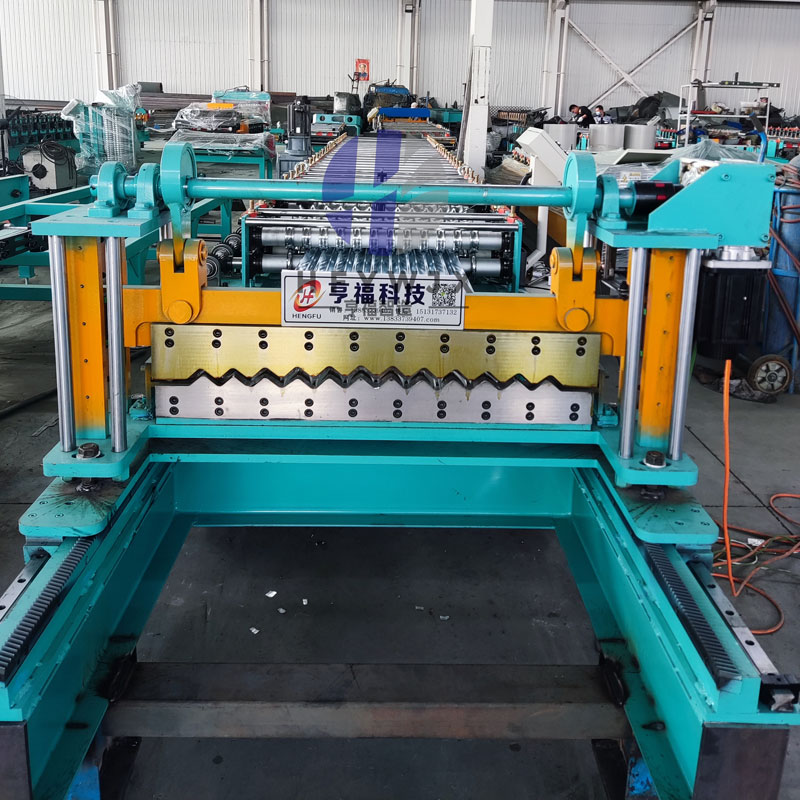

| Cutting Резка | Post-forming, dual 3.8kW tracking shears, 5.5kW electric shears (burr-free cutting, extremely low maintenance) Постформинг, два ножа для строгания 3,8 кВт, электроножницы 5,5 кВт (резка без заусенцев, крайне низкие эксплуатационные расходы) |

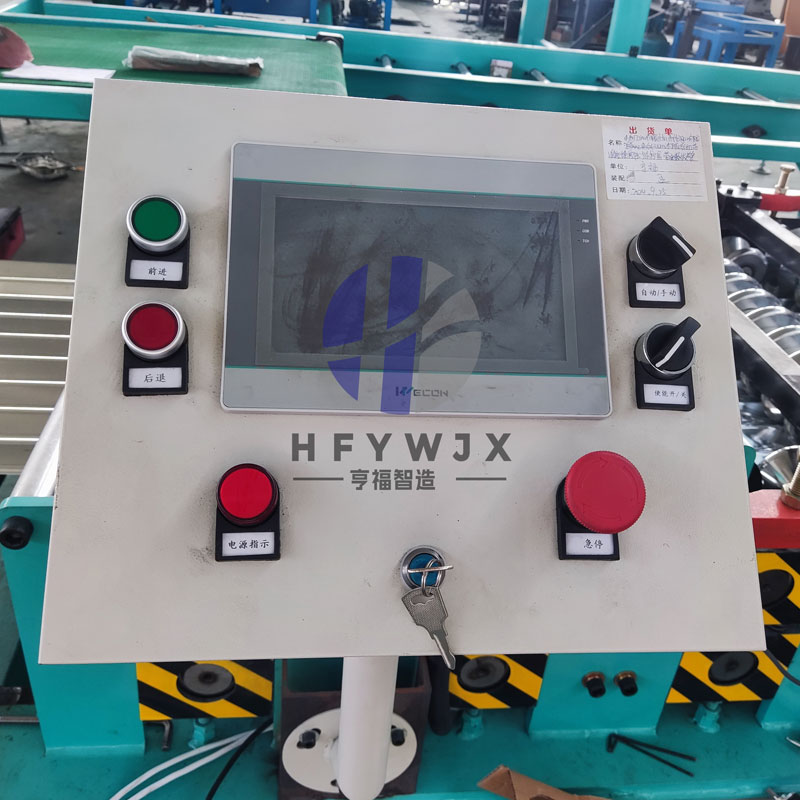

| Electronic Control System Электронная система управления | Industrial PLC vertical control box Вертикальный блок управления с промышленным ПЛК |
| Electronic Control System Электронная система управления | Split touch screen with remote control Разделённый сенсорный экран с дистанционным управлением |
Display of product types produced by the equipment
Our company can produce various types of tile pressing machine products, and the roll forming plate types are diverse.
Certifications
Packing
Customer & EXPO
FAQ
Q1:Are you a manufacturer?
A1:Yes absolutely. Welcome a lot for your visiting to us.
Q2:Do you have after-sale support?
A2:Yes, we're always here for giving you advice and support for technical details since
we have senior technician.
Q3:Is there quality control when manufacturing the lines?
from laying off the raw material, processing the rollers and the other parts, make
treatment on the roller surface and shaft, assembling, testing and packaging.
Q4:What's your strength comparing to the other supplier?
A4:We'll supplying you the best quality and service. We'll give you good advise beyond
your requirements. The lines are easily for installation and with low mantenance
requirements.
Q5: Any other service?
A5: We can manufacture, design, installation and debug various roll forming machines
including standard and customized machines.
It is free to assemble machine and
train your works, but the buyer should pay for the round-trip airplane ticket, and
arrange
accommodation during that time.
