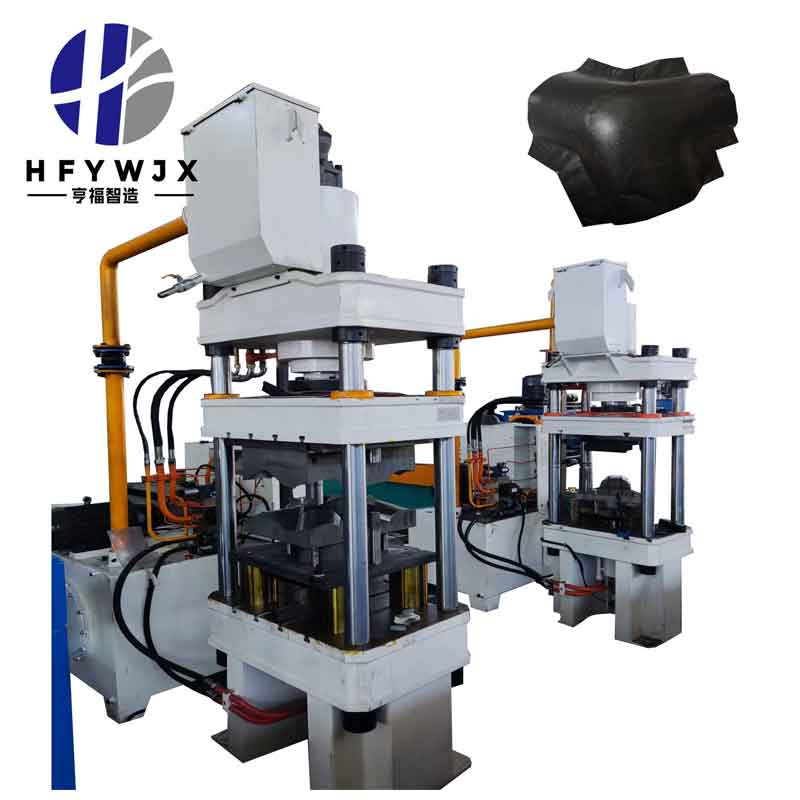

100T ridge tile three-way equipment

Powered primarily by a hydraulic system, this machine applies 100 tons of pressure to a blank made of sheet metal or other materials through a mold

Product Details

Powered primarily by a hydraulic system, this machine applies 100 tons of pressure to a blank made of sheet metal or other materials through a mold, causing it to plastically deform within the mold cavity and form into the shape of a ridge tile tee. By adjusting the mold and related parameters, the machine can produce ridge tile tees of varying sizes and shapes to suit the needs of various building roofs.

Name
Название
100T ridge tile three-way equipment
Оборудование для трёхстороннего монтажа коньковой черепицы 100T
Nominal force
Номинальное усилие
1000 kN
1000 кН
Maximum working pressure
Максимальное рабочее давление
25 MPa
25 МПа
Effective stroke
Эффективный ход
400 mm
400 мм
Maximum opening
Максимальное открытие
800 mm
800 мм
Return force
Сила возврата
165 kN
165 кН
Slide speed
Скорость слайда
100 mm/s
100 мм/с
Working stroke
Рабочий ход
5-25 mm
5-25 мм
Effective worktable area
Эффективная площадь рабочего стола
Left and right (inside the column) 700 mm
Front and back (edge) 700 mm
Слева и справа (внутри колонны) 700 мм
Спереди и сзади (по краю) 700 мм
Ejector cylinder
Цилиндр выталкивателя
20 ton
20 тонн
Ejector stroke
Ход выталкивателя
200 mm
200 мм
oil pump power
Мощность масляного насоса
7.5 kW
7,5 кВт


Display of product types produced by the equipment

Our company can produce various types of tile pressing machine products, and the roll forming plate types are diverse.

Certifications

Packing

Customer & EXPO


FAQ

Q1:Are you a manufacturer?

A1:Yes absolutely. Welcome a lot for your visiting to us.

Q2:Do you have after-sale support?

A2:Yes, we're always here for giving you advice and support for technical details since we have senior technician.

Q3:Is there quality control when manufacturing the lines?

from laying off the raw material, processing the rollers and the other parts, make treatment on the roller surface and shaft, assembling, testing and packaging.

Q4:What's your strength comparing to the other supplier?

A4:We'll supplying you the best quality and service. We'll give you good advise beyond your requirements. The lines are easily for installation and with low mantenance requirements.

Q5: Any other service?

A5: We can manufacture, design, installation and debug various roll forming machines including standard and customized machines.
It is free to assemble machine and train your works, but the buyer should pay for the round-trip airplane ticket, and arrange
accommodation during that time.
