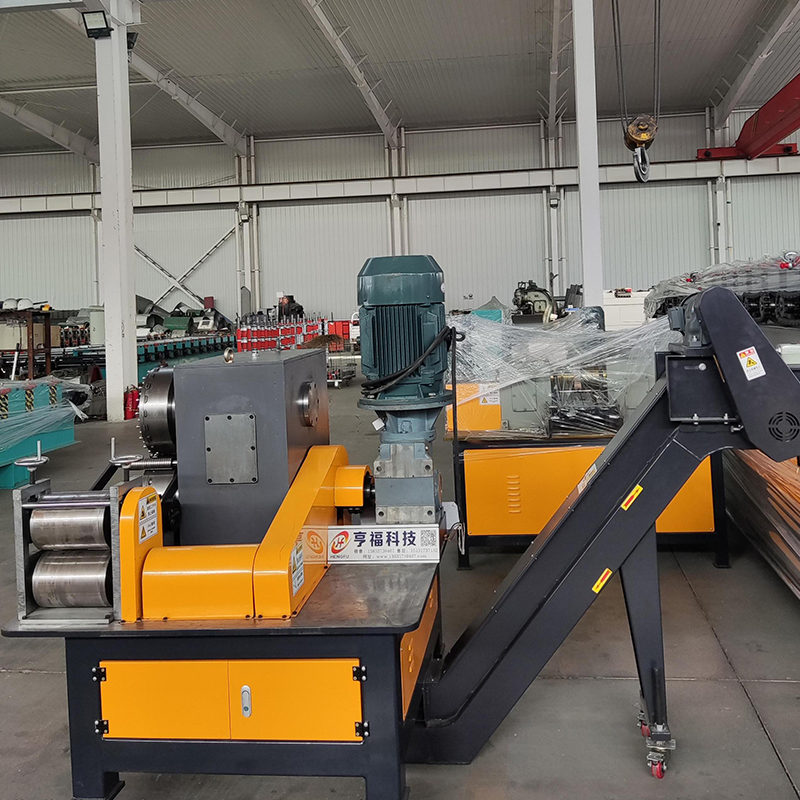

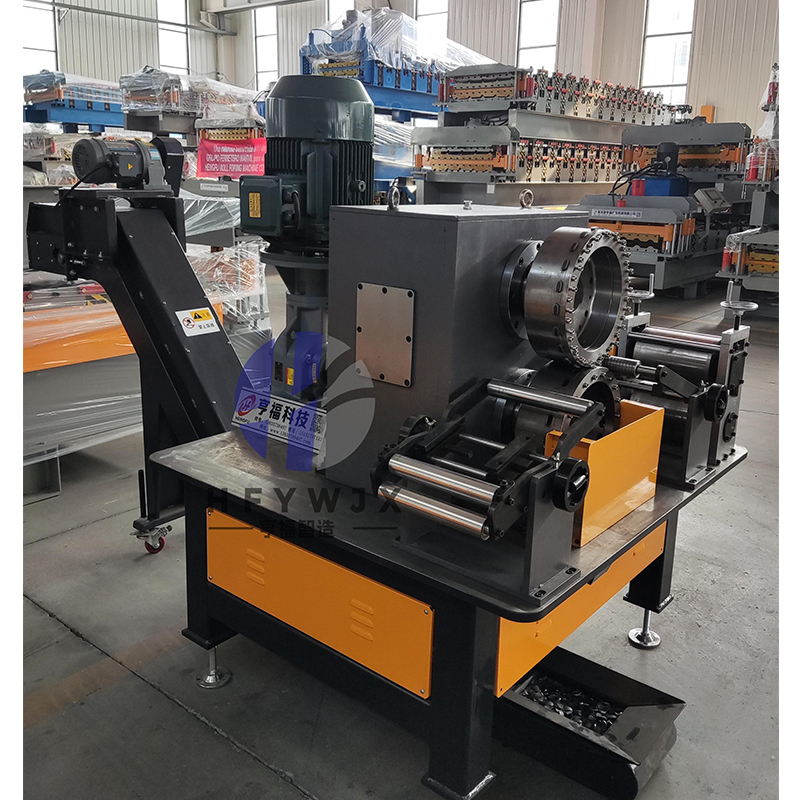

High speed rolling machine

High speed rolling machine technical parameters：

1. Host:

1) Integral box structure: It has sufficient rigidity and anti-deformation ability. The overall thermal aging treatment eliminates internal stress and avoids the possibility of box deformation under heavy load in the later period;

2) 20GrMnTi high-precision cylindrical helical gear ensures that the tooth involute is infinitely close to the theoretical shape and the wear resistance life is greatly increased. Equipped with a gear anti-backlash mechanism to eliminate the problem of position deviation between the punch needle and the die;

3) All matching positions adopt optional matching technology to ensure zero error during installation;

4) The transmission shaft is made of high-quality alloy material, and heat treatment processes such as normalizing and quenching and tempering are adopted during the process;

5) In addition to exquisite raw materials, the mold wheel also adopts an integrated grinding process to ensure zero jump and zero swing of the shaft system and wheel system;

6) The mold material is selected from 8566, with a hardness of HRC58-60, and precision slow wire cutting. The shape and accuracy are guaranteed to be at the micron level;

7) The bearing set adopts a temperature rise linear expansion compensation scheme to ensure that the relative position of the mold wheel set remains absolutely unchanged;

8) Gear splash-type lubrication is self-cleaning, and the oil film will not break when the tooth surface pressure is 200MPa, ensuring the durability of gear accuracy.

2. Clamping mechanism:

Equipped with refill rack, discharging rack and adaptive adjustment mechanism

3. Adaptation speed: 10-50m/min

4. Electrical configuration: equipped with touch screen button station; variable frequency speed control inverter 7.5KW; motor 5.5KW; voltage 380V, frequency 50Hz;

5. Dimensions: length 1350cm, width 1250cm, height 1100cm. (Unit: mm)
